After I had decided to use Ubiquiti UniFi for my wireless I then had to start building my network design. This leads me to an issue. UniFi vs EdgeMax

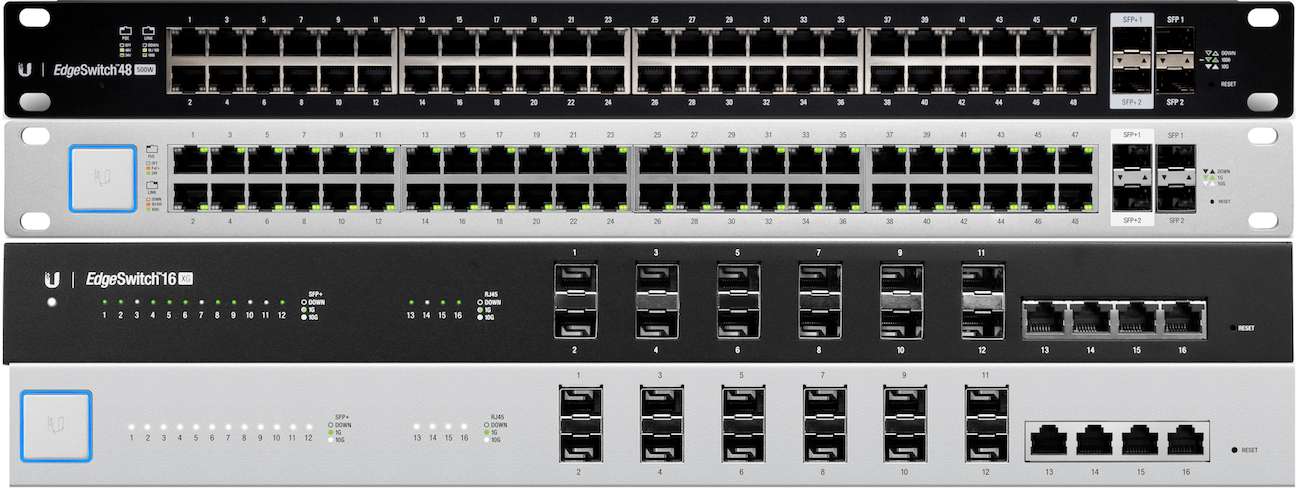

Figure 1. EdgeMax ES-48-500W/ES-16-XG and the UniFi US-48-500W/US-16-XG.
From a hardware level, they are pretty much the same. The only real difference is that the EdgeMax’s are black, the UniFi are grey. And the EdgeMax doesn’t need its arms screwed on as they are already there. From a hardware level, there are no other differences. The UniFi vs EdgeSwitch shares the same internals and ports.
ES-48-500W/US-48-500W; 48 1GB Ethernet, 2 x 10GB SFP, 2x 1GB SFP.
ES-16-XG/US-16-XG; 16x 10GB SFP, 4x 1GB Ethernet.
It is also worth noting, that you can’t flash firmware from UniFi Switch to EdgeSwitch. Despite the same internals they cannot load each others firmware. Once you pick one you are locked into either UniFi or EdgeSwitch.
From a function standpoint, they are very different gear. The EdgeMax is by many considered to be their more advanced range.
The UniFi Switches are L2 switches with simple designs. You manage them via the UniFi Controller and it lacks any type of independent web interface. It does give you a CLI interface, and you can make normal changes via the CLI. Thought it comes with an issue, nothing done via CLI is actually saved on the switch. When the switch is restarted the controller will push its known configuration back down.
This means that if you make changes via CLI, you have to then make the same changes via the UniFi Controller or you will lose the settings.
The EdgeSwitch, however, is a different beast. It contains L2 and L3 commands, it is accessible via SSH, Telnet, HTTP & HTTPS (though I think we should all turn off Telnet and HTTP). It is designed to be a stand-alone switch and has proven itself as a capable switch. Now the EdgeSwitch isn’t completely standalone, recently Ubiquiti released UNMS or Ubiquiti Network Management System. Its design is to bring EdgeMax devices into a unified console for management, though it should be said this is a companion product. Ubiquiti don’t plan to replace the SSH and HTTPS management.
Figure 2. UNMS main console.
This screenshot is the actual UNMS I currently use. It contains 13 devices, this number will increase as I slowly upgrade my switches firmware from 1.7.1 to 1.7.4. When you have 50+ switches you don’t want to just do them all one night and hope it works.
UNMS also gives me the ability to obtain backups from all switches, check logs and even control the firmware rollout. It is a great product that while technically still in Beta I have seen it go through each update, always bringing in more and more features.
And while currently, my EdgeRouter has interface control Figure 3. The EdgeSwitch don’t have this feature yet. But I am told it is coming. This would give you the best of both worlds, the ability to not only control the switches independently but also to control them via a unified console.

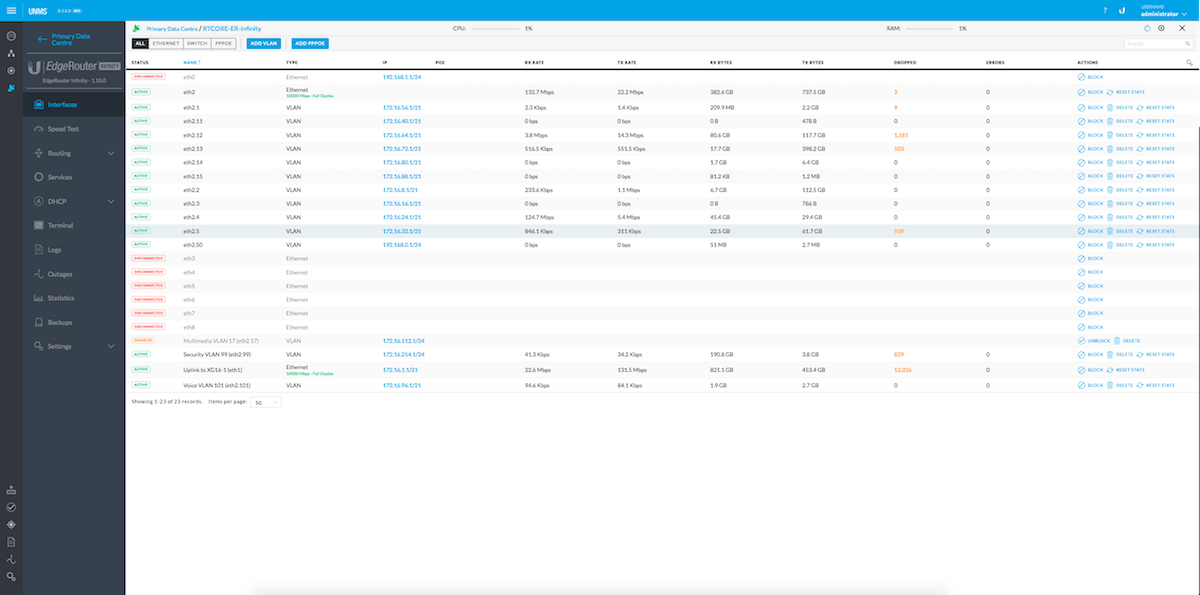

Figure 3. UNMS Interface Control.
And finally, the reason I choose EdgeSwitch over UniFi. To me, it seems to be a more mature product. Both switches have been around the same time, but I just felt there were more benefits to using the EdgeSwitch over UniFi.
Figure 4. Core Design, during install.
Figure 5. Final core installs with messy cables.
As you can see above, I didn’t just put the switches on the edge of my network. I put them everywhere, including my core. Above is my core made up of 7x ES-XG-16 and 4x ES-48-500W switches.
I have no other core switches, I don’t have an HP 5400 or 8200 hidden behind the scenes. I rely on EdgeSwitch to handle all my inter-building communications. It also connects my servers to the network. To me, the UniFi Switches to me just aren’t mature enough for that level of responsibility.
Figure 6. Size of the EdgeSwitch Rollout.
I would love to hear from people who have used UniFi switching for their core and see how it goes. I would be using these gear for three years, and I hope that UniFi has come along further in those three years.
